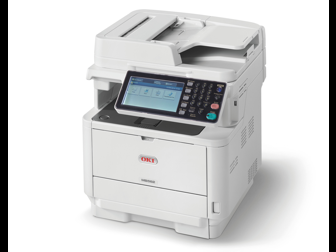

OKI ES5162 A4 Mono

Fleet Size 1
Description
Number of users: 1 - 25
Functionality: Automatic duplex copying, printing, scanning and fax
A4 Print speed: 45ppm
A4 Copy speed: Up to 37.5ppm
A4 Scan speed: Up to 10/30ppm colour/mono
Print resolution: 1,200 x 1,200dpi
Maximum paper capacity: 1,160 sheets of 80gsm
Monthly print volume: 5,500 pages
Features: Wireless LAN, 7” LCD colour touch screen display
Description

Fast and efficient, the ES5162 MFP combines automatic duplex printing, copying, scanning and fax functions with a high monthly duty cycle, extra high-capacity toners and large standard paper capacity, making it ideal for larger workgroups.

Features

Wireless LAN, 7” LCD colour touch screen display

Specifications

Copy

Type Desktop
Scanning Method Color CIS
Printing Technology Digital LED Electrophotographic Printing Method
Copy Density Adjustment 7 levels (Manual)
Input Capacity Tray 1 : 530 sheets
(Optional)Tray 2 : 530 sheets
Multi-purpose tray : 100 sheets
Scan Resolution Up to 600 x 600 dpi
Print Resolution Up to 600 x 600 dpi
Original Type Sheet
Original Size Flatbed: A4, A5, A6, B5, Letter, Executive; ADF: A6, B5, A5, A4, Letter, Legal 13, Legal 13.5, Legal 14, Executive
Copy Paper Size A6, B5, A5, A4, Letter, Legal 13, Legal 13.5, Legal 14, Executive
Reduction / Enlargement 25 – 400 %
Maximum Copies 99 sheets
Copy Speed A4 37 cpm
First Copy Out Time Approx. 10.0 seconds
Warm-up Time Approx. 60.0 seconds from power-on
Approx. 17.0 seconds from power save
Power Source Single phase 220 - 240 VAC ±0%, 50/60 Hz ±2%
Power Consumption Operating: Max. 950W / Ave. 660W
Idle: 95W
Power Save: 12.0W
Deep Sleep: 1.9W
Auto-Off: 0.5W
Memory (Std./Max.) *1 512MB/512MB
Safety & Environment Regulation Energy Star, Blue Angel, GS Mark, EMC-Directive, CE Mark
Noise Level Operating :Approx. 56 dBA
Idle: < 30 dBA
Power Save: < 7 dBA or Background level
Operating Environment Operating: 10 - 32 °C, 20 - 80 %RH
Storage: 0 - 43 °C, 10 - 90 %RH
No condensation
Dimensions(WxDxH) 427 x 425 x 493 mm
Weight(includes supplies) Approx. 20.0 kg
In the Box Image Drum x 1, Starter toner cartridge x 1, DVD-ROM, Telephone Cable, Ferrite Core, Power cable

Footnotes;

*1 3GB eMMC

Print

Print Speed A4 45 ppm
First Print Out Time Approx. 5.0 seconds
Print Resolution 1200 x 1200 dpi
Interface 1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed), Wireless LAN (IEEE802.11a/b/g/n)
Protocol TCP/IP
Printer Language PostScript 3 emulation, PCL 5e emulation, PCL 6 (XL) emulation
Supported OS Windows 8.1, Windows 8.1 x64, Windows 8, Windows 8 x64, Windows 7, Windows 7 x64, Windows Vista, Windows Vista x64, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64, Windows Server 2003, Windows Server 2003 x64, OS X 10.9, OS X 10.8, OS X 10.7, Mac OS X 10.6, Linux
Memory (Std./Max.) *1 512MB/512MB
Font PCL emulation 87 scalable fonts, 4 bitmap fonts, PostScript emulation 136 fonts
Paper Type Plain, Label, Envelope
Paper Size *2 A4, A5, B5, A6, Letter, Legal 13, Legal 14, Legal 13.5, Executive, Custom Size: Width 86-216 mm x Length 140-1320 mm
Paper Weight Tray 1 : 80 gsm
(Optional)Tray 2 : 80 gsm
Multi-purpose tray : 80 gsm
Input Capacity Tray 1 : 530 sheets
(Optional)Tray 2 : 530 sheets
Multi-purpose tray : 100 sheets
Output Capacity Face Down : Max. 150 sheets

Footnotes;

*1 3GB eMMC

*2 Custom size : Tray 1 : 100 x 148 ‐ 216 x 355.6 mm (3.94 x 5.83 ‐ 8.5 x 14 inches), Tray 2 (optional) : 148 x 210 ‐ 216 x 355.6 mm (5.8 x 8.27 ‐ 8.5 x 14 inches), MP tray : 86 x 140 ‐ 216 x 1320.8 mm (3.4 x 5.5 ‐ 8.5 x 52 inches)

Scan

Scan Resolution Max. 600 x 600 dpi
Scan Speed Max. 11 ipm Color, 6 ipm mono
Interfaces USB 2.0 (High Speed) Host, 1000BASE-T/100BASE-TX/10BASE-T, Wireless LAN (IEEE802.11a/b/g/n)
Supported Protocol SMTP, FTP(S), HTTP(S), CIFS, TWAIN, WIA1.0, WIA2.0, ICA
Output Format High compression PDF, Secure PDF, JPEG, TIFF, XPS
Driver TWAIN, WIA1.0(Windows XP), WIA2.0(Windows Vista or later), ICA(Mac OS X 10.6 or later)

Fax

Applicable Line PSTN, PBX
Interface RJ-11 x 2 (Line, Tel)
Transmission Resolution Normal: 8 dots/mm x 3.85 lines/mm
Fine/Photo: 8 dots/mm x 7.7 lines/mm
Extra Fine: 8 dots/mm x 15.4 lines/mm
Ultra-Fine: 16 dots/mm x 15.4 lines/mm
Communication Speed G3: 14.4kbps, Super G3: 33.6kbps
Encoding Method MH, MR, MMR, JBIG
Communication Mode ITU-TG3, Super G3
Transmission Original Size Max. Legal 14, Length 355 mm
Paper Size Max.Legal 14, Min.Letter
Transmission Time Approx. 3.0 sec. / page
Memory Max. 200 pages (4MB)
Other Function Duplex scanning, LDAP, Speed Dial(300 locations), PC Fax

Document feeder

Type Reverse Automatic Document Feeder (RADF)
Original Size A4, A5, A6, B5, Letter, Legal 13, Legal 13.5, Legal 14, Executive
Original Weight 60 - 105 gsm
Capacity Max. 50 sheets
